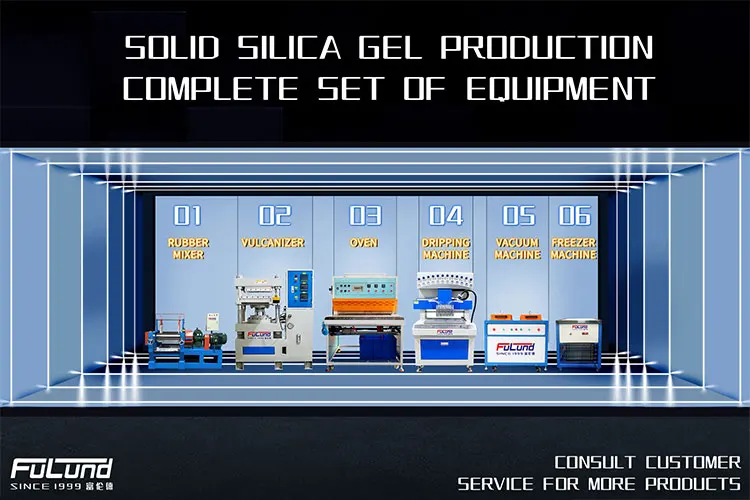

SOLID SILICA GEL PRODUCTION COMPLETE SET OF EQUIPMENT
Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.
Fulund mainly products: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.
PVC product process flow diagram:
1, Mixing: According to requirements, according to a certain proportion of PVC materials, mixing evenly;

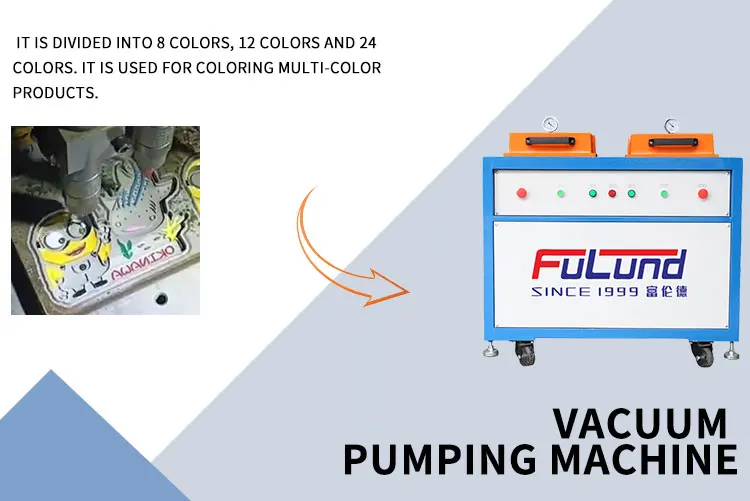

2, vacuum: The use of our special PVC vacuum equipment to remove bubbles;

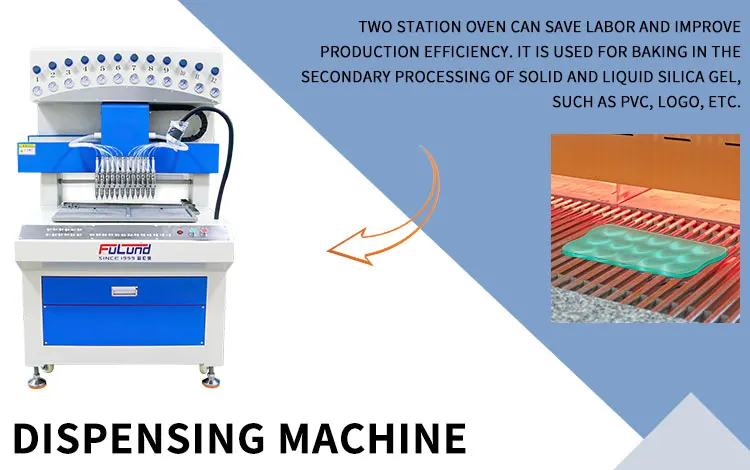

3, dispensing: The PVC raw materials into the dispensing machine,

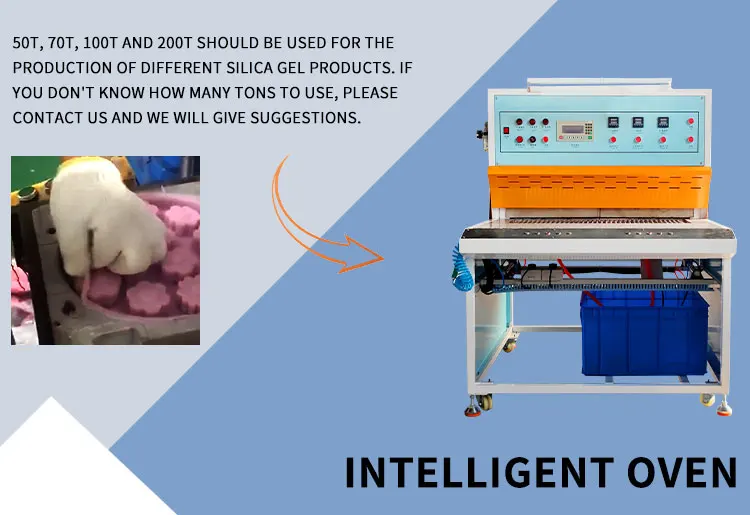

4, drying: After the injection molding table cut pieces into the energy-saving oven or baking mold table, its drying and shaping;
5, filling the bottom material: after the molding table into the automatic bottom material filling machine,
6, dry the bottom material: will fill the bottom material mold again into the energy-saving oven or baking mold table dryingshape;
7, complete: Cooling table take out the product, Trim and tear off the leftover material, the plastic part of PVC product isfinished.
Technical parameters:
| Model No. | FLD-1 |
| Machine Size | 950*940*1500mm |
| Weight | 250KG |
| Electric heating power | 1.6KW |
| Effective Trip | 600*350*70mm |
| Worktable Size | 550*350mm |
Machine Features:
1: Shortcut keys can be set to facilitate the operation of workers, avoiding the direct operation of the machine in the mode of fixed order. With this function, the machine can be used flexibly. When workers fully master the machine, it can also operate circularly, which can greatly improve the efficiency.
2: Simple operation, multi needle and multi-color, flexible configuration, simple operation, accurate dropping, and continuous feeding without shutdown.
The needle can be extended to 8-18 colors, and multiple needles can be combined at the same time without glue leakage. Full automatic PVC drop plastic dispensing machine, with complete performance, is a professional PVC drop plastic trademark machine.
This machine has the function of synchronous dispensing valve. For example, 12 dispensing valves can be lowered simultaneously for single color trademark, 6 dispensing valves can be lowered simultaneously for double color trademark, 4 dispensing valves can be lowered simultaneously for three color trademark, and so on.
This machine has more functions that other similar machines do not have, that is, 12 different molds can be produced at the same time within the usable range of this machine, which greatly improves the use power of different molds and reduces the concern that some customers think they can't use the glue dispenser if the quantity is small.
3, High precision, high stability, fast and smooth rounding speed and low sound. The accuracy can reach 0.01mm The product quality is very stable, with uniform thickness and weight, and the product qualification rate reaches more than 95%, reducing the waste of raw materials. High stability: work for you continuously for 24 hours to solve the worries of not delivering in time when receiving large orders!
Application scope:
Drop plastic production of PVC trademark and soft rubber label
PVC cartoon and handicraft drop plastic production
Production of PVC shoes, bags and other clothing accessories
